Understanding Weighing Indicators: Mechanisms and Types

What is a Weighing Indicator?

A weighing indicator is a pivotal device in the world of measurement, designed to work seamlessly with load cells or industrial scales to gauge and display the weight of various objects. Its primary function is to convert the mechanical force exerted by an object into an electrical signal, process this signal, and then display the weight in easily understandable units, such as kilograms or pounds. Weighing indicators find their applications across diverse sectors, including industrial operations, commercial settings, and laboratory environments.

Working Mechanism

The operation of a weighing indicator involves a series of intricate steps:

1. Load Cell Interaction: At the heart of the weighing process is the load cell, the crucial sensing element responsible for detecting the deformation caused by the weight of an object. This deformation is measured by strain gauges embedded within the load cell.
2. Signal Conversion: The strain gauges within the load cell convert the mechanical deformation into electrical signals. These signals are transmitted to the weighing indicator for further processing.
3. Weight Calculation: The weighing indicator processes the incoming electrical signals using its internal electronics. It converts these signals into weight measurements, taking into account the calibration and characteristics of the load cell.
4. Display: The final weight calculation is shown on a digital or analog screen. Modern weighing indicators often feature additional functionalities, such as tare functions, data transfer capabilities, and statistical analysis tools, enhancing their usability and precision.

Types of Weighing Indicators

Weighing indicators come in various designs and functionalities, tailored to meet specific needs:

1. Analog Indicators: These traditional devices display weight using a dial and pointer. Although they offer a straightforward approach, analog indicators require manual reading and can be influenced by environmental factors such as vibrations.
2. Digital Indicators: Modern digital indicators present weight measurements in numerical form. They often come with advanced features, including data logging, unit conversion, and connectivity options for computers or printers. Digital indicators are generally more accurate and user-friendly compared to their analog counterparts.
3. Specialized Indicators: These indicators are crafted for specific applications:
   • Panel-Mounted Indicators: Fixed installations designed to be compatible with various load cells and sensors.
   • Portable Indicators: Built for mobile use, ideal for on-site weighing in industrial settings.
   • Multi-Function Indicators: Capable of measuring additional parameters such as force and torque, depending on the connected sensor.

Types of Weighing Indicators in Detail

1. Fixed Scale Indicators: These indicators feature a stationary scale, meaning the scale remains static while the pointer indicates the measurement. Common examples include vehicle speedometers and analog power meters. Variants include:
   • Straight Uneven Scale: A fixed scale with a non-uniform measurement range.
   • Circular Recorder with Concentric Indicator: Features a circular scale with concentric indicators.
   • Multiple Scale Indicator: Displays multiple scales on a single dial.
2. Movable Scale Indicators: In this type, the scale moves in response to changes in input, though the pointer remains fixed. This design allows for dynamic measurement adjustments.
3. Gauge Dial Indicator: Particularly useful in environments with vibrations, such as industrial settings. These indicators are often filled with glycerine to stabilize the pointer and ensure consistent readings despite vibrations.
4. Inclined Manometer Indicator: Utilizes an inclined tube to measure pressure changes. The liquid within the tube travels along the inclined path based on the applied pressure, providing accurate readings.
5. Rotating Disc Movable Scale Indicator: Commonly found in homes, hospitals, and gyms. This indicator features a rotating disc that moves with the input changes, offering convenience and ease of use in various settings.

HIRS Global stands out as a premier Static Weighing System Dealer, offering top-notch weight indicators tailored for diverse applications. Here’s an overview of some of our leading indicators:

1. Weighing Indicator T06

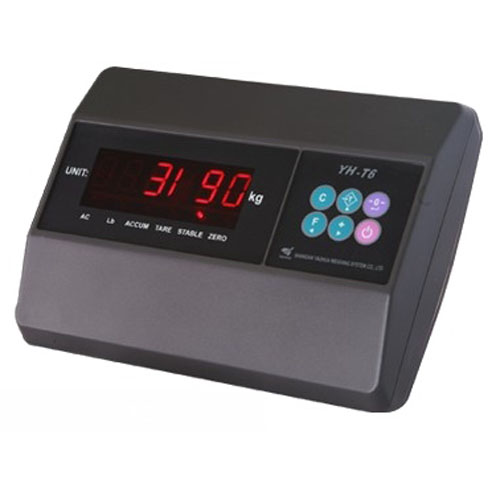

   Ideal for platform and floor scales, this indicator supports 1-4 load cells. It features an AC/DC power supply with a built-in rechargeable battery (6V/4AH), automatic power-off at low battery, and an RS232 interface (optional). The display includes a 6-digit LED and 6 status indications, making it a reliable choice from your Static Weighing System Dealer.
2. Weighing Indicator T07
   Perfect for electronic platforms and floor scales, this indicator is compatible with 1-4 350Ω load cells. It boasts a 2-inch highlight LED display, peak value holding, average value function, and an auto/manual accumulation feature. With high precision A/D conversion (readability 1/30000) and multiple alarm functions, this indicator reflects the high standards of a Static Weighing System Dealer. It also includes RS232 and scoreboard communication interfaces.
3. Weighing Indicator T09
   Designed with a full stainless-steel body, this indicator is suited for various electronic scales. It offers multifunctional LCD display, animal weighing function, and external serial port printing. Features such as high-low limits alarm, precision auto zoom, and multiple battery options highlight its versatility and durability. As a reliable Static Weighing System Dealer, HIRS Global ensures this indicator meets the highest performance standards.
4. Weighing Indicator A9
   This high-precision indicator is ideal for electronic floor scales, weighbridges, and truck scales, handling input signals from -16mV to 18mV. It features a 7-digit LED display, multiple calibration methods, and extensive data storage capabilities. With robust anti-disturbance functions and various printing options, this indicator exemplifies the quality you expect from a Static Weighing System Dealer.
5. Weighing Indicator A12
   Featuring fast, high-precision A/D conversion technology and anti-vibration software, this indicator is perfect for electronic and mechanical-electronic scales. It includes counting functions, selectable backlight modes, and optional RS232 and scoreboard interfaces. As a leading Static Weighing System Dealer, HIRS Global ensures this indicator delivers exceptional reliability and performance.
6. Weighing Indicator VT300
   The VT300 is a powerful alphanumeric terminal designed for weighbridges and complex weighing applications. It includes a 16-character dot-matrix LCD, 27 alphanumeric and functional keys, and advanced software for managing transactions. The stainless steel enclosure and extensive reporting capabilities make it a robust solution from your trusted Static Weighing System Dealer.

Weighing indicators are indispensable tools that offer precise weight measurements and contribute to enhanced operational efficiency. From traditional analog indicators to advanced digital and specialized variants, understanding the different types and their functionalities helps in selecting the right indicator for your specific needs. Whether in industrial, commercial, or laboratory settings, the choice of a weighing indicator can significantly impact accuracy and performance. Choose HIRS Global for top-quality weight indicators and experience the excellence of a true Static Weighing System Dealer.
